Description

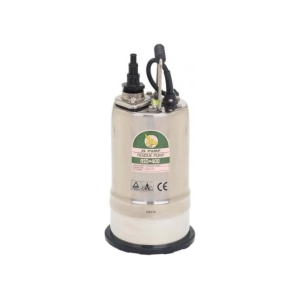

Top outlet, twin mechanical seals, carbon ceramic and silicon carbide in a lubricated chamber. Stainless steel outer case, shaft and motor case. Cast iron lower motor bearing/seal housing, motor top cover and volute. Complete with 10 metres of power cable. Hose tails are supplied with all models. Water features, drainage applications, clean and dirty water. Maximum immersion 7 metres.
For automatic operation these pumps can be fitted with the MAC3 cable float switch or an AGMA tube float. Please ask for details if the model isn’t listed, NOTE the AGMA is not recommended to be fitted to the RS750 110v due to the high current rating.
Features
- Cast iron pump body
- Plastic impeller RS150-400
- Cast iron impeller RS550-750
- Max solids 6mm
Applications
- Clean water
- Dirty water
- Drainage
| Model | Power (Kw) | Outlet size | Max Flow lpm | Max Head (m) | Weight (kg) |
| RS 150 | 0.15 | 1¼” | 180 | 7.5 | 12 |
| RS 250 | 0.25 | 1½” | 200 | 9 | 13 |
| RS 400 | 0.4 | 2” | 210 | 11.5 | 14 |
| RS 550 | 0.55 | 2” | 280 | 11 | 19.6 |
| RS 750 | 0.75 | 2” | 345 | 15 | 20 |
